FTIR ACCESSORIES

Single Reflection

Single Reflection ATR Accessory The AccessATR™ single reflection ATR accessory makes ATR FTIR spectroscopy accessible to everyone. It is perfect for quick and accurate ATR measurements of most samples and it is affordable. Simply place the sample on the ATR crystal, record the spectrum and wipe the crystal clean. The AccessATR™ is equipped with a built-in trough to contain liquids and a press for solid sampling.	Arm Reflection Accessory The da Vinci Arm is a unique articulated opto-mechanical FTIR accessory designed for analyzing samples that are too large to fit into the sample compartment of a spectrometer. The da Vinci Arm enables the analysis of samples by specular, diffuse and ATR reflection techniques. Since the da Vinci Arm is articulated, it simplifies analysis of samples in front of, below, or above the spectrometer sample compartment.	Diamond Probe The Diamond Probe is a fiber optic ATR accessory designed for analyzing a wide range of samples in the mid-infrared. Sample types include liquids, pastes, slurries, powders, and solids. Samples can be located up to 1.5 meters from the spectrometer. The single reflection 45° diamond ATR element is Harrick’s crowned hemisphere, mechanically sealed in 316 stainless steel

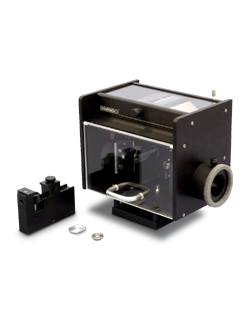

Variable Angle Reflection Send to friend The Seagull™ is a powerful accessory for examining powders, optical coatings, opaque substrates, films on opaque substrates, and slightly curved solids by variable angle FT-IR reflectance spectroscopy. This accessory easily adapts for specular, ATR or diffuse reflectance measurements. The Seagull™ operates over a broad range of incident angles without misaligning the system, defocusing the incident radiation, or changing polarization. This makes it an extremely versatile	FatlR Analysis System The FDA now requires the amount of trans fat per serving to be indicated on the Nutrition Facts food label. To assist in meeting this requirement, Harrick Scientific developed the FatIR™ System. This ATR FTIR oil analyzer complies with the FDA-approved AOAC method 2000.10 for routine quantitative ATR measurements of total trans fat content. The FatIR™ System is a straightforward analytical tool for fast, easy, and accurate	wire grid polarizer The highly efficient Harrick Wire Grid Polarizer consists of a wire grid that is holographically deposited onto a KRS-5 substrate. This polarizer has a wide spectral range from 5000 cm⁻¹ to 285 cm⁻¹. The thin profile of this polarizer makes it convenient for applications in which there are space constraints. The general-purpose model is mounted into a fully 0° to 360°

Multiple Reflection

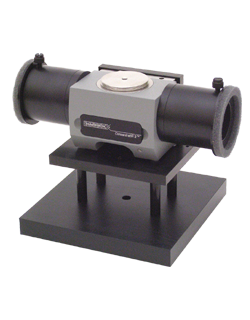

Multiple Reflection ATR Accessory The ConcentratIR2™ is a miniaturized version of the original Harrick multiple-reflection ATR accessory which is compatible even with smaller FTIR sample compartments. Designed for micro-liquid samples, it features interchangeable diamond and silicon ATR sampling plates. Both ATR configurations consist of a thin disk of silicon or diamond that is optically contacted to a special ZnSe component. The silicon configuration has eleven internal reflections with a nominal incident angle of 30°	FiberMate2™ Fiber Optic Coupler The FiberMate2™ links your FT-IR or UV-Vis spectrometer to fiber optic probes. Equipped with large ellipsoidal mirrors, the FiberMate2™ efficiently transmits the UV-Vis or FTIR beam of the spectrometer through the fiber optic probe. The FiberMate2™ utilizes all reflective optics, optimizing the wavelength range of the fiber optic probe employed.	Horizon™ Multiple Reflection ATR Acc The Horizon™ multiple reflection ATR accessory is well suited for analysis of liquids, pastes, powders, and thick films by infrared spectroscopy. Its unique design utilizes the astigmatism inherent in spherical mirrors to shape the FT-IR beam to match the aperture of the ATR crystal, keeping radiation away from the edges of the crystal.
Torque Screwdriver The Torque Screwdriver is ideal for applying the measured and reproducible pressure to compress solid and power samples to ATR crystals, as required for ATR spectroscopy. This low-torque screwdriver delivers from 20 to 100 oz-in (141 mN-m to 706 mN-m) and is adjustable in 2 oz-in (14 mN-m) increments. It comes with five hex bits for use with the compatible Harrick ATR accessories.

Diamond ATR and ATR Microsamplers

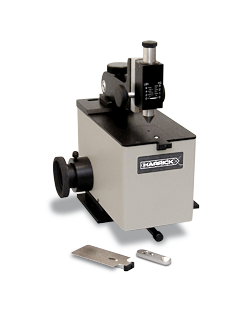

Diamond ATR Accessories The Meridian™ is the ultimate accessory for small or extremely hard samples by horizontal ATR spectroscopy (HATR). The Meridian™ has a sampling area less than 500 µm in diameter, the smallest for any diamond ATR. It applies localized, measured pressure for superior contact between the sample and its diamond ATR crystal. The Meridian™ integrates Harrick's PermaPurge™ for rapid sample and crystal exchange with minimal purge interruption	Single Reflection ATR Microsampler This single reflection ATR accessory combines a convenient horizontal sampling surface with a 0.5 mm diameter sampling area, making the MVP-Pro ideal for quick and easy examination of a wide range of samples by infrared spectroscopy. Small drops of liquid and minute smears of pastes can be placed directly on the ATR crystal. Coatings on wire, paint chips, fabrics, powders, and miniature hard samples can be pressed against the crystal using the built-in pressure applicator	Star Diamond ATR Accessory The MVP-Pro Star™ is single reflection diamond ATR accessory. It features a convenient horizontal sampling surface with a 1.5mm diameter sampling area. The MVP-Pro Star is the choice for infrared spectroscopy measurements of extremely hard samples, abrasive powders and highly corrosive materials. Since the MVP-Pro Star™ is affordable, durable, and straightforward to use, it is an excellent choice for routine analysis of liquids, solids and powders
Single Reflection ATR Microsampler The VideoMVP™ offers all the advantages of a high performance diamond ATR accessory plus video imaging and optional force sensing capabilities. The VideoMVP™ features a convenient horizontal sampling with an active sampling area of less than 500 µm in diameter on its monolithic diamond. This makes it ideal for infrared spectroscopy measurements of extremely hard samples, abrasive powders, fibers, beads, and even corrosive materials

Variable Temperature or Pressure Cells

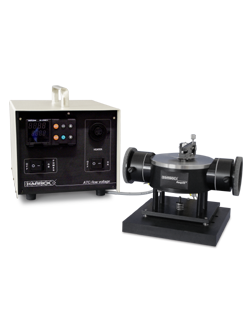

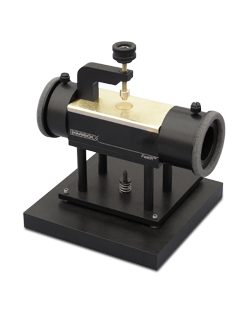

Single Reflection ATR Accessory The FastIR™ is a single reflection horizontal ATR accessory which incorporates a convenient horizontal sample stage for quick ATR spectroscopy of solids, liquids, and pastes. Sample analysis is simple and straightforward: place or spread the sample on the ATR crystal, record the spectrum and wipe the crystal clean. The FastIR™ HATR incorporates PermaPurge™ for rapid sample and ATR crystal exchange without interrupting the purge of the FT-IR spectrometer	Multiple Reflection ATR Accessories The Horizon™ multiple reflection ATR accessory is well suited for analysis of liquids, pastes, powders, and thick films by infrared spectroscopy. Its unique design utilizes the astigmatism inherent in spherical mirrors to shape the FT-IR beam to match the aperture of the ATR crystal, keeping radiation away from the edges of the crystal	RangeIR™ Liquid Analyzer The RangeIR™ is a powerful tool for the analysis of liquids, pastes, and gels under controlled temperatures up to 175°C. The unique design allows the safe use of the sample temperature itself in this control, an invaluable feature for rigorous studies. Reactants and reaction products can be monitored as a function of temperature. In addition, the RangeIR™ can be used for sensitive measurements on dissolved
Single Reflection ATR Microsampler This single reflection ATR accessory combines a convenient horizontal sampling surface with a 0.5 mm diameter sampling area, making the MVP-Pro ideal for quick and easy examination of a wide range of samples by infrared spectroscopy. Small drops of liquid and minute smears of pastes can be placed directly on the ATR crystal. Coatings on wire, paint chips, fabrics, powders, and miniature hard samples can be pressed against the crystal using the built-in pressure applicator
